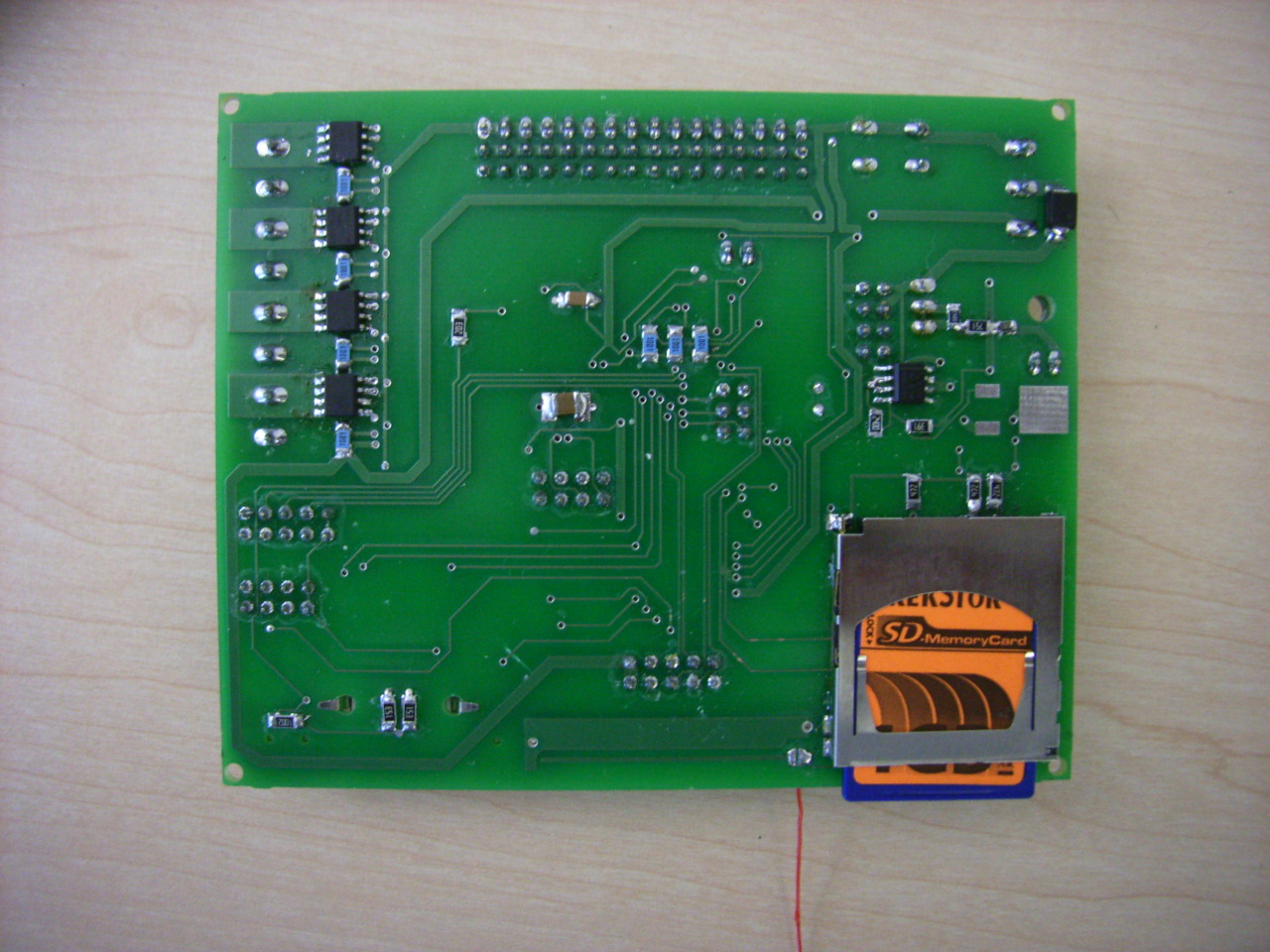

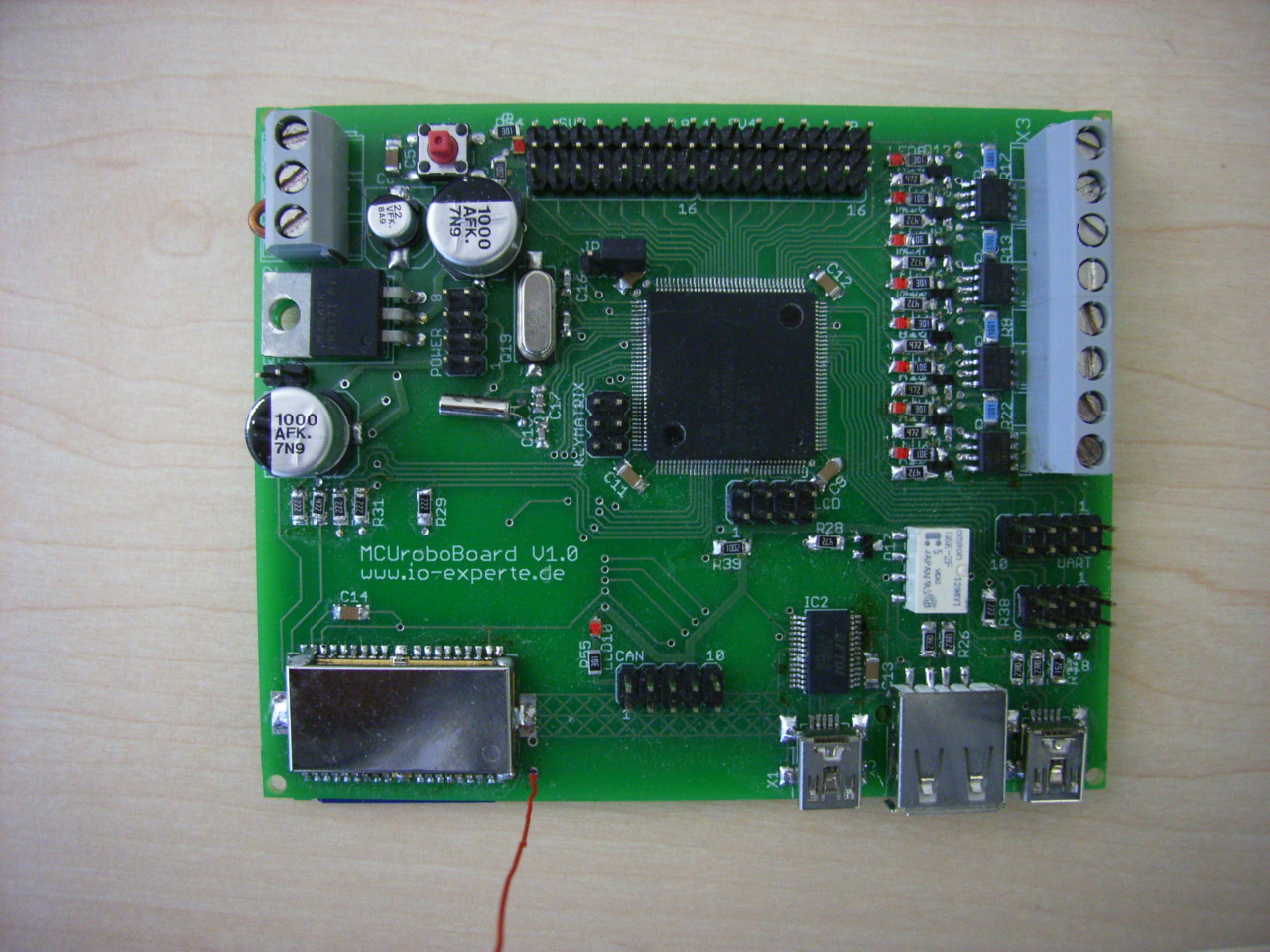

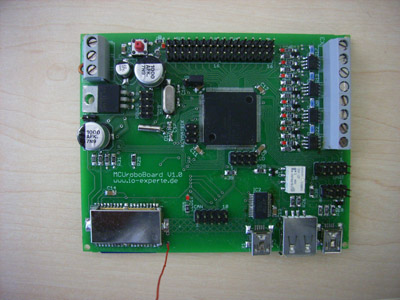

MCUroboBoard with Fujitsu 16FX MB338US Microcontroller



Connectivity:

  • Power Supply
  • USB (Ftdi Chip)
  • USB Host
  • USB Function
  • 2x UART (TTL)
  • 2x I2C
  • 2x CAN (TTL)
  • 1x LCD
  • 1x 3x3 keymatrix
  • 8x Powerdriver / 4x Motordriver
  • 8x External Interrupts
  • 8x Analog Ports
  • 1x SDCard Slot

    • Features:

  • Power Supply 9 to 12V
  • Bluetooth Module (SPP - BTM222)
  • SD Card Slot
  • USB to RS232 Converter via mini USB
  • USB Host/Function switchable
  • 2x CAN
  • 2x UART
  • 1x 3x3 Keymatrix
  • 1x LCD Connector
  • 8x High Voltage / High Power Connectors

    • BOM:

    bom_mcuboard.htm

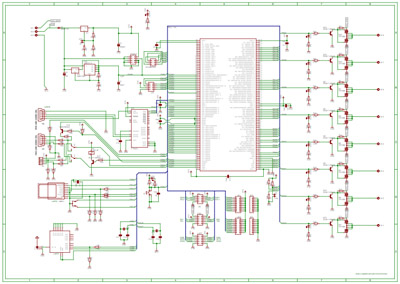

    Schematic:
